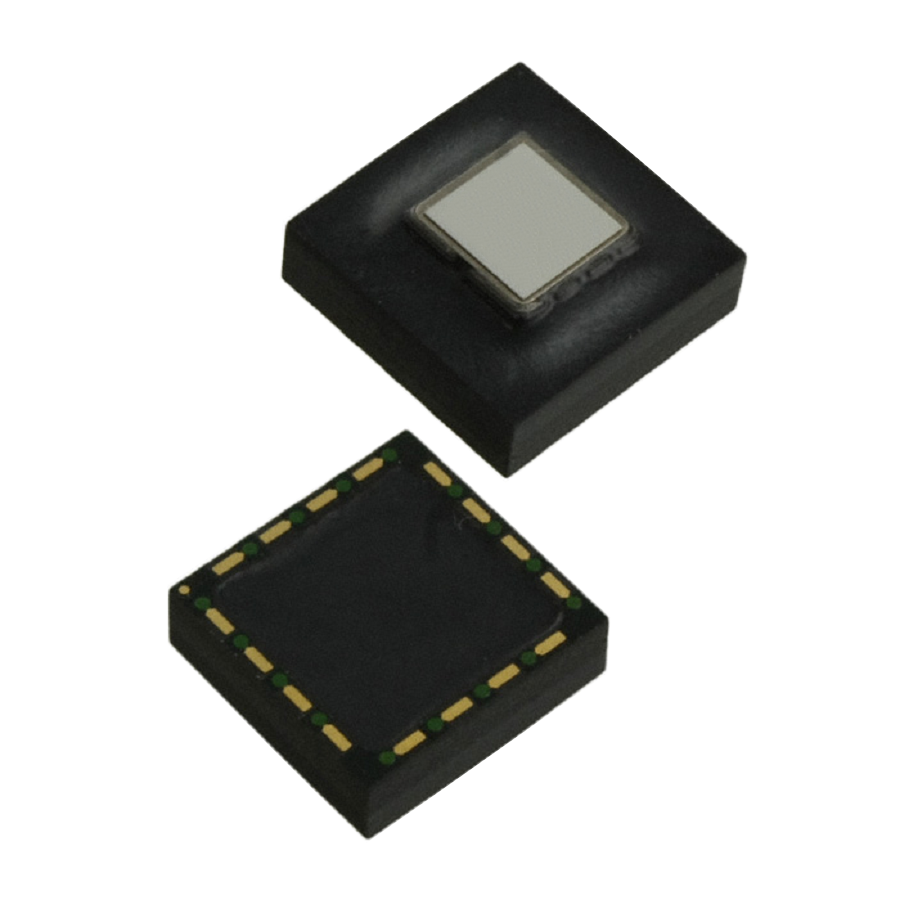

ADIS16209CCCZ
Manufacturer:
Analog Devices
Mfr.Part #:
ADIS16209CCCZ
Datasheet:
Description:
Accelerometers LGA-16 SMD/SMT 2 Axis 0.025°/LSB SPI
| Parameter | Value |
|---|---|
| Length | 9.35 mm |
| Width | 9.2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 3.9 mm |
| Packaging | Tray |
| Depth | 9.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | Accelerometer |
| Interface | SPI |
| Axis | X or Y |
| Bandwidth | 50 Hz |
| Output Type | SPI |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 3 V |
| Number of Bits | 12 |
| Operating Supply Current | 14 mA |
| -3db Bandwidth | 50 Hz |
| Sensitivity | 0.025°/LSB |
| Nominal Supply Current | 11 µA |
| Sensor Type | 2 Axis |
| Resolution | 2 B |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| Sensitivity (mV/g) |
Stock: 3
Distributors
pcbx
pcbxUnit Price$82.06320
Ext.Price$82.06320
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $82.06320 | $82.06320 |
| 10 | $79.95090 | $799.50900 |
| 25 | $77.89286 | $1947.32150 |
